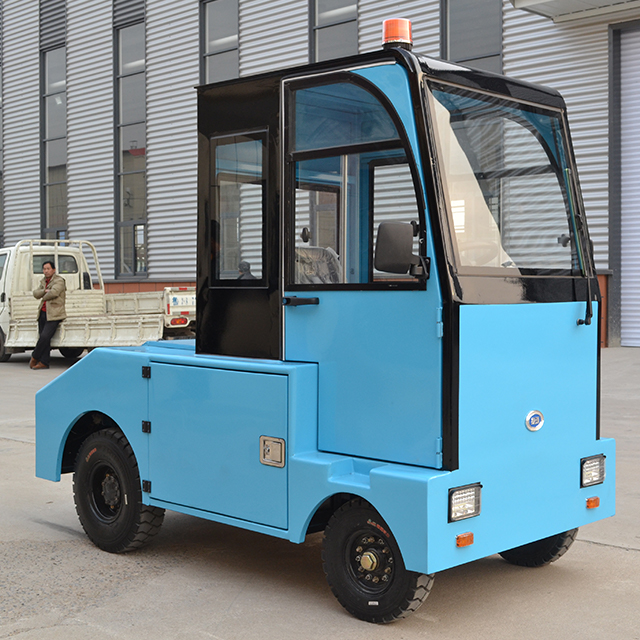

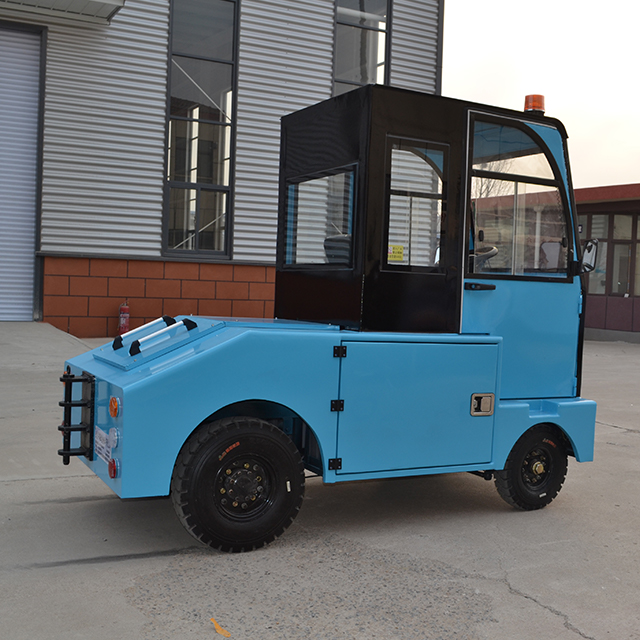

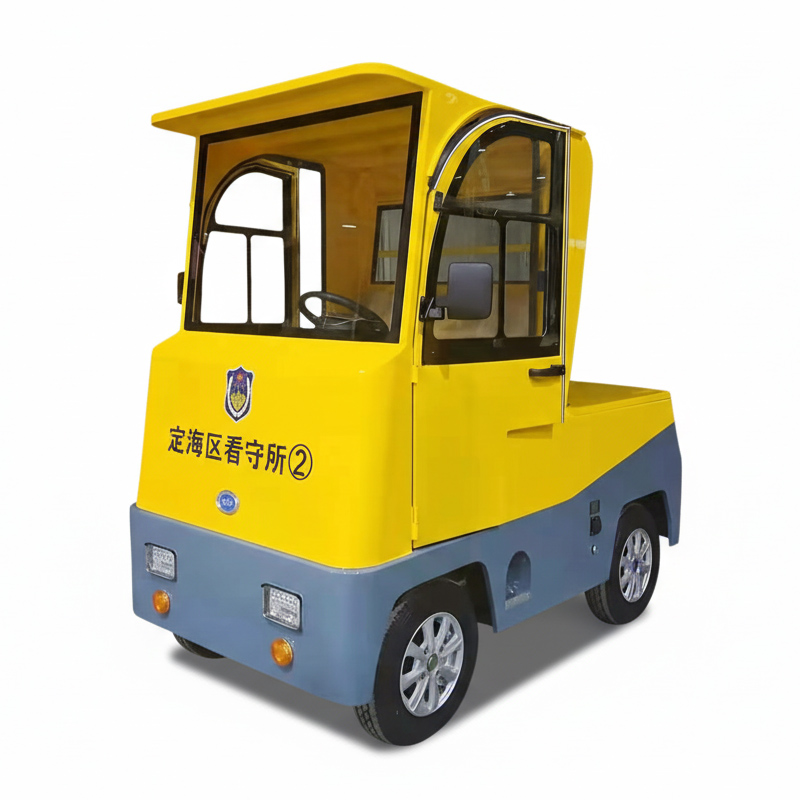

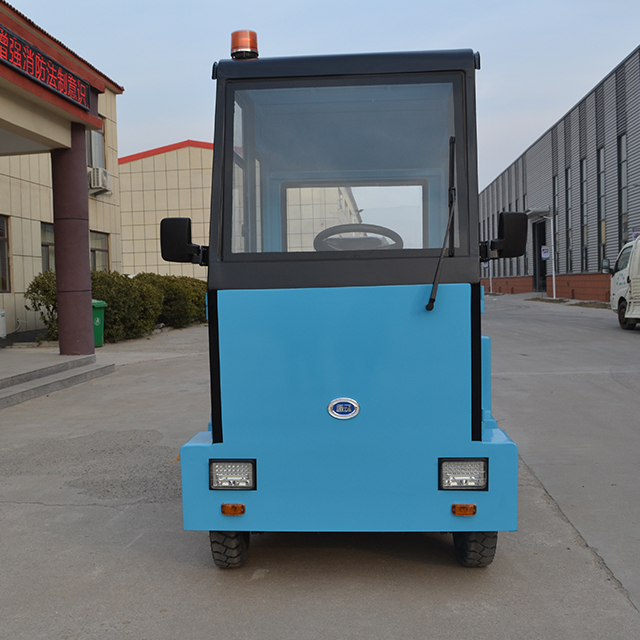

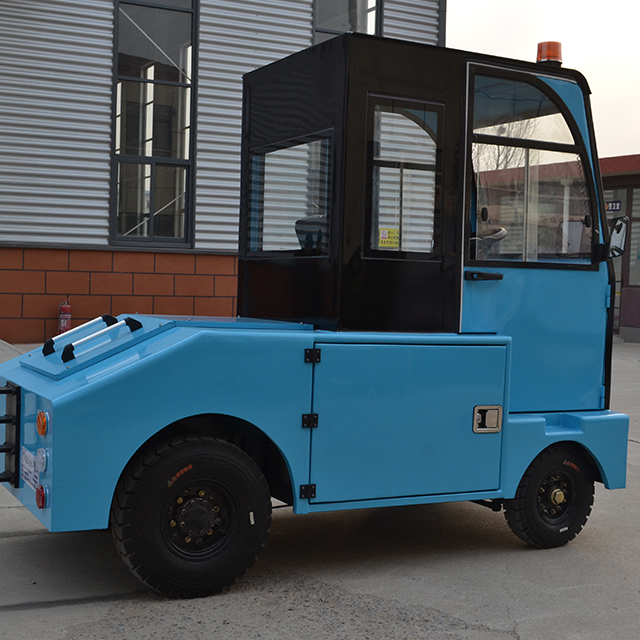

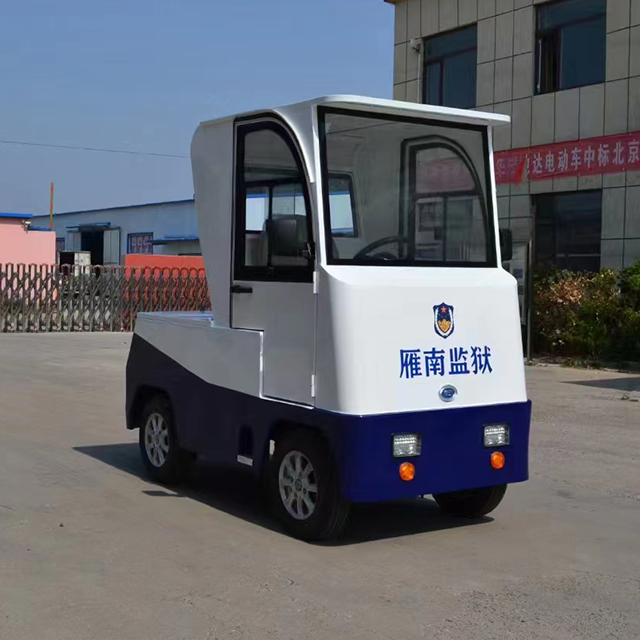

WINNER-T 3T
WINNER
WINNER-T 3T
Life-Cycle Economic Efficiency
Energy consumption costs are significantly lower compared to diesel, with potential reductions exceeding 60%, making it ideal for high-frequency operations.
Environmental Adaptability and Compliance
Zero-emission operation through pure electric drive eliminates exhaust pollution, meeting environmental regulations in confined spaces such as ports, airports, and underground warehouses. Its low-noise advantage (below 65 dB) enables 24/7 operation in noise-sensitive areas like logistics centers near residential zones or e-commerce warehouses during night shifts.
Strong Scenario Adaptability
Suitable for diverse applications including logistics, manufacturing, and air freight. Its compact body and small turning radius allow flexible operation in constrained spaces such as container gaps and narrow loading docks.
| Model | WINNER-T 3T |
| Battery | 2V 250Ah × 24 units (48V large-capacity deep-cycle flooded lead-acid batteries, specially for tractors) |
| Electric machinery | 5 kW AC motor |
| L * W * H | 2300×1200×2000mm |
| Vehicle assembly quality | 1050kg |
| Maximum towing capacity | 2000-3000kg |
| Maximum travel speed | 28km/h |
| Mileage | 60-80km |
Ports and Container Terminals
Container transportation, used for short-distance container movement between the wharf front and the yard.
Airport Cargo Areas
Air cargo towing, transporting baggage trailers or freight pallets between the apron, cargo terminals, and sorting centers, with low noise ensuring nighttime operation.
Logistics Warehousing and Distribution Centers
Towing trailers between warehouse docks and loading/unloading zones. The compact body adapts to narrow spaces, improving loading and unloading efficiency.
Large-Scale Manufacturing Parks
Production line material handling, towing material carts within automotive, electronics, and other manufacturing workshops, providing Just-In-Time (JIT) supply to production lines.
Rail Freight Stations and Intermodal Hubs
Rail container shuttle services, connecting railway freight yards and road transport nodes to accomplish "last-mile" cargo transfer.
Please refer to Owner's Manuals for details.
